发表于 2004-6-17 12:00:49
|
显示全部楼层
這是 因為被鎖的IP都被丙大解開,從此誓死捍衛丙大管理權的負負得正在2004/6/16 下午 12:33:28時留下的留言  IP:61.63.92.18 | R1與R6,YAMAHA宣稱R1的骨架縱向剛性增加百分之多少,橫向剛性增加百分之多少......但,我看了之後......很懷疑,還有04'R1的後懸吊怎麼好像只是03'R1與R6(甚至其他款)後懸吊臂的倒置?如果只是倒置的話,很懷疑YAMAHA組車的原則......04'R1真的很美也很讚,但......許多部分也亂怪一把的,是否只是求前衛而欠實際呢?
With it's last design update in 2002, the YZFR1 for 2004 enters its 3rd generation for its next 2 year reign.
Avaialble in team race colors Bue/White, plus the Red/Black shown, and Silver & Black. All new 3rd Generation 1000cc YZF-R1 highlights the...
Yamaha 2004 Sportbike lineup

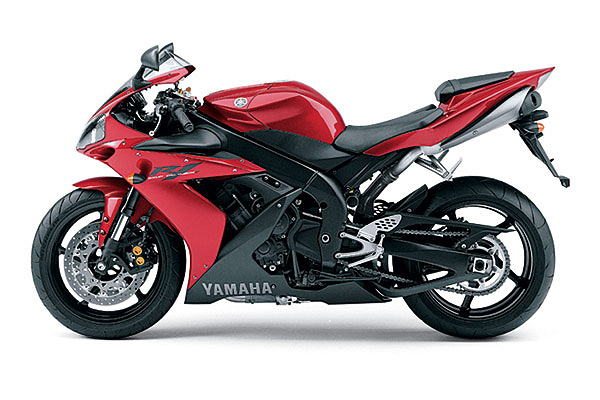

2004 YZF-R1

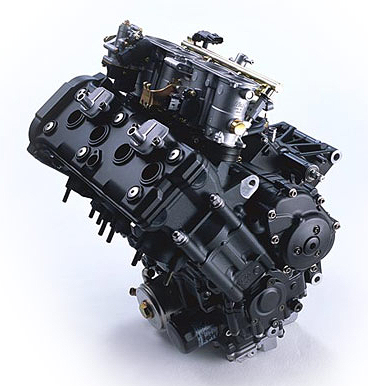

You're looking at what Yamaha says they're learned in 50 years of competition. It begins with anew third-generation, 998cc, liquid-cooled, short-stroke, 20-valve, in-line four-cylinder engine designed to make 180 horsepower power at a stratospheric 12,500 rpm. The shorter cylinder head is re-angled farther forward to 40 degrees, far enough forward to allow the main frame spars to go over the engine instead of around it.

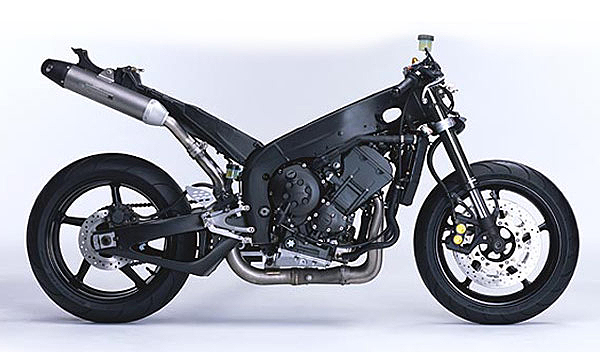

 That straighter load path makes the Deltabox V frame massively strong, even as it makes the bike narrow to better fit the rider. Together with its light, strong and long Controlled Fill die cast truss swingarm, all that power is deployed to the pavement with the help of a fully adjustable piggyback shock absorber. Titanium exhaust with Yamaha's lightweight Exhaust Ultimate Powervalve (EXUP) is routed under the seat for greater mass centralization. 56 degrees of cornering clearance is a good thing too. New, five-spoke wheels at both ends are light to spool up fast. Radial-mount forged calipers and 320mm discs provide outstanding braking performance for bending controllably into tight chicanes at the end of long, sixth-gear straights. |  |
2004 YZF-R1 Specifications
Engine Type
Type 998cc, liquid-cooled, 20-valve, DOHC, in-line four-cylinder
Bore x Stroke 77 x 53.6mm
Compression Ratio 12.1:1
Carburetion Fuel injection, dual-valve throttle bodies with motor-driven secondary valves
Ignition Digital TCI
Transmission 6-speed w/multi-plate clutch
Final Drive #530 O-ring chain Other
Primary Reduction Ratio 65/43 (1.512)
Secondary Reduction Ratio 45/17 (2.647)
Color Team Yamaha Blue/White; Liquid Silver/Cerulean Silver; Shift Red
Warranty 1 Year (Limited Factory Warranty)
| Chassis
Suspension/Front 43mm inverted telescopic fork w/adjustable preload, compression and rebound damping; 4.7" travel
Suspension/Rear Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 5.1" travel
Brakes/Front Dual 320mm discs; radial-mount forged 4-piston calipers
Brakes/Rear 220mm disc w/single-piston pin-slide caliper
Tires/Front 120/70-ZR17
Tires/Rear 190-50-ZR17 Dimensions
Length 81.3"
Width 28.3"
Height 43.5"
Seat Height 32.8"
Wheelbase 54.9"
Rake (Caster Angle) 24.0°
Trail 3.8"
Fuel Capacity 4.85 gallons
Dry Weight 379 lbs.
|

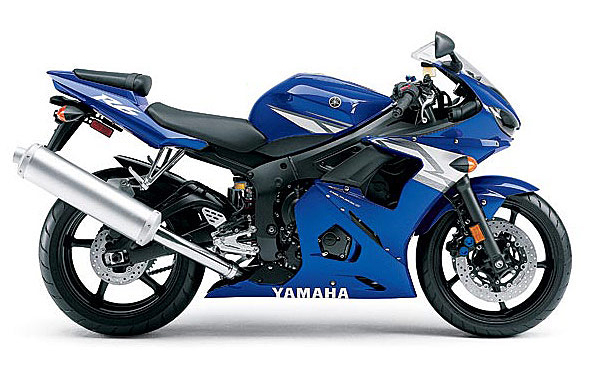

2004 YZF-R6
Something old, something new, something blue? Newly redesigned for 2003 from the ground up, the 2004 YZF-R6 just gets minor revisions midway thru its 2-year design cycle. Still, if you never let the YZF-R6's tachometer needle roam into the second half of its arc, you might never know what's lurking there waiting to be unleashed. And... here's what's new for 2004. An ingenious suction-piston fuel injection system (re-mapped for '04), among other things, endows it with amazingly goodroad manners at low and medium engine speeds. But we had a higher calling in mind for the little beast that won the AMA Supersport Class Championship** right out of the gate as well as Cycle World, Sport Rider and Motorcycle Online 600 comparisons.* A 15,500 rpm redline. Redesigned exhaust canister providing improved exhaust flow for 2004. This one is pure sportbike, designed from the asphalt up to achieve a delicate, sublime blend of handling and horsepower, finesse and feel, hyperactive agility and laser-beam predictability. Absolute leading-edge technology takes tangible form in the R6's light and rigid DeltaBox III frame - an almost seamless pieceof alloy artisanship that allowed the engineers to put strength - and the revvy 4-cylinder - exactly where they belong. From there, all sorts of good things flow. 2003 YZF-R6 Specifications
Available from October 2003 • MSRP TBA
Engine Type
600cc, Liquid cooled, 4-stroke, forward inclined inline 4 cylinder, DOHC, 16 valves Bore x Stroke 65.5 x 44.5mm Compression Ratio 12.4 1 Carburetion Fuel Injection Ignition Digital DC-CDI Transmission 6-speed w/multi-plate clutch Final Drive #530O-ring chain Chassis Suspension
Front 43mm inverted telescopic fork w/adjustable preload, compression and rebound damping; 4.7" travel Suspension/Rear Single shock w/piggyback reservoir and adjustable preload, compression and rebound damping; 4.7" travel Brakes/Front Dual 298mm floating discs w/4-piston calipers Brakes/Rear 220mm disc w/ single-piston caliper Tires/Front 120/60-ZR17 Tires/Rear 180-55-ZR17 Dimensions Length 79.7" Width 27.2" Height 42.9" Seat Height 32.3" Wheelbase 54.3" Rake (Caster Angle) 24.0° Trail 3.4" Fuel Capacity 4.5 gallons Oil Capacity (with oil filter change) 2.85 Qt. Dry Weight 357 lbs. Other
Primary Reduction Ratio 86/44 (1.955) Secondary Reduction Ratio 48/16 (3.000) Gear Ratio - 1st Gear 37/13 (2.846) Gear Ratio - 2nd Gear 28/18 (1.556) Gear Ratio - 3rd Gear 28/18 (1.556) Gear Ratio - 4th Gear 32/24 (1.333) Gear Ratio - 5th Gear 25/21 (1.190) Gear Ratio - 6th Gear 26/24 (1.083) Color Team Yamaha Blue/White; Liquid Silver w/ Flames; Rapid Red Warranty 1 Year (Limited Factory Warranty) |
|
洗頁中...... |
|
晚生最近被她迷得垂涎到脫水!!
這是 因為被鎖的IP都被丙大解開,從此誓死捍衛丙大管理權的負負得正在2004/6/12 下午 06:32:09時留下的留言
這台現在在哪裡你們一定不相信,答案是台灣,一個前台灣籍旅日WSBK車手現HRC技師(我認識喔)名下.
......竟然又失敗一次......又要重洗了......
